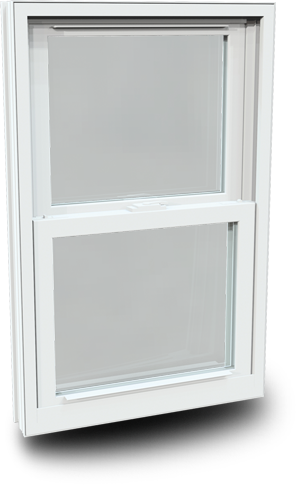

UNCOMPROMISING QUALITY
The Cornerstone XT provides beauty, performance, value, and uncompromising quality. From its classic design and rich traditional style to its ultra energy- efficient performance, the Cornerstone XT delivers. It’s available in single hung and double hung, picture window, 2 and 3 lite horizontal sliders, and many custom architectural shapes.
Increase the energy performance to the level you desire with our Solar Smart Energy Package. We offer the absolute best glass option to keep your home cool in the summer and warm in the winter.
You can add your own designer touches to your windows with our many different divided lite and decorative glass options. We offer many options to give your windows a distinct accent.
Cornerstone XT windows allow you to create an endless array of design possibilities with its vast selection of styles, sizes and shapes. Give your openings some flair with operable architectural shapes. With this series, you can create any number of architectural shapes, from circle tops and eyebrows to trapezoids and triangles; it will fill your needs.

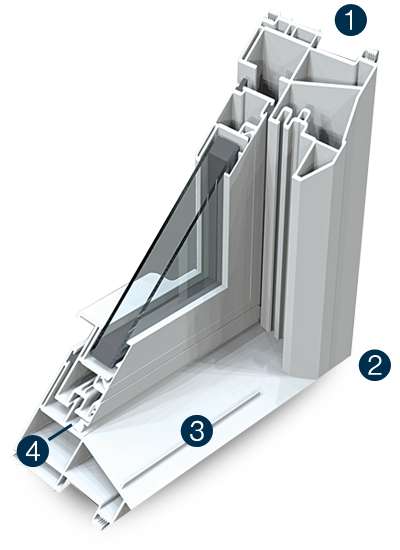

BUILT STRONG
With Cornerstone there’s no need to sacrifice aesthetics for performance. Our windows are designed to enhance the look of your home and keep it safe from the elements.
- The 3¼” multi-chambered frame provides superior strength, rigidity and durability. The added depth allows the face of the frame to be narrower, which lets more natural light into your home.
- Every corner of a Cornerstone window is precision fusion welded; no screws or silicone.
- The high performance true-sloped sill directs water away from the window naturally, while the auxiliary water evacuation route provides extra protection during the harshest weather conditions.
- The vertical sill interlock and the high performance compression seal with barrier flap provide structural strength and protection against air and water infiltration.

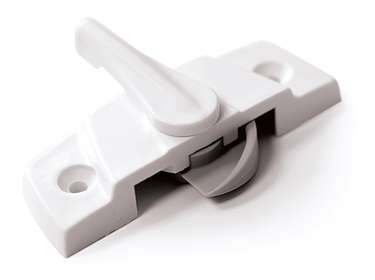

VANGUARD LOCK
The Vanguard Advanced composite cam lock is designed to provide maximum protection from forced entry and to seal the window tighter as it locks. These American made composite locks contain no zinc or lead. The marine grade composite material has been shown to be superior to metals in strength, impact resistance, and corrosion resistance. The sloped cam pulls the sashes together and also forces the sash downward to compress the seal against the sill.
DURAFORCE BALANCE SYSTEM
DuraForce is a balance system made up of tempered, stainless steel, self-adjusting, coil springs that effortlessly support the sash. This system is maintenance free and ensures extremely smooth, quiet operation for a lifetime.

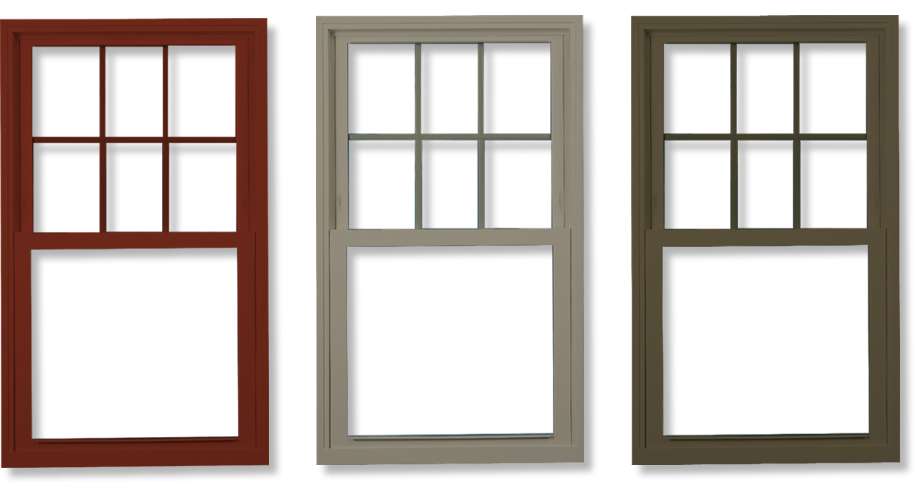

STANDARD WINDOW COLORS
PREMIUM WINDOW COLORS

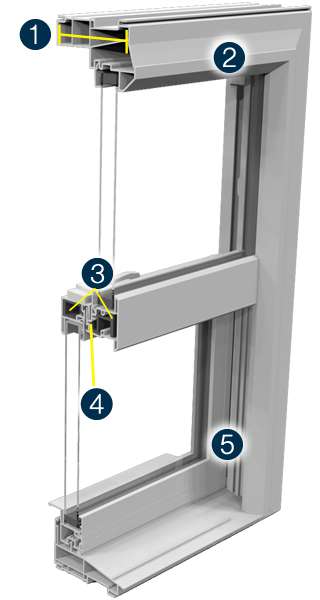

SINGLE HUNG

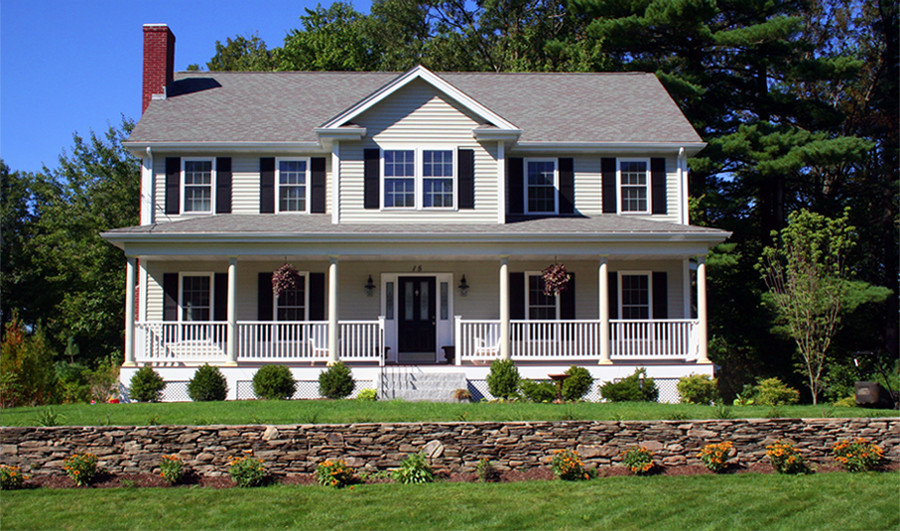

EXTERIOR
- 3¼” Heavy duty multi-chambered frame depth provides strength, insulation, and durability.
- Defined beveled exterior gives the Cornerstone Series crisp, clean sightlines and an enhanced appearance.
- Structurally reinforced center meeting rail with contoured design and dual wall construction provides superior strength and performance ratings.
- Full interlocking meeting rail with full length fin-seal weatherstrip, in conjunction with the locking system, ensures maximum security against forced entry and the outside elements.
- Attractive heavy-wall rectangular glazing beads with co-extruded durometer seal provide a tight seal against the glass.

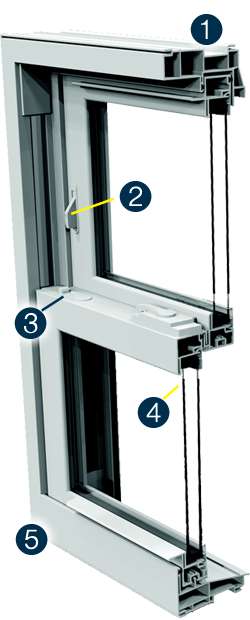

DOUBLE HUNG

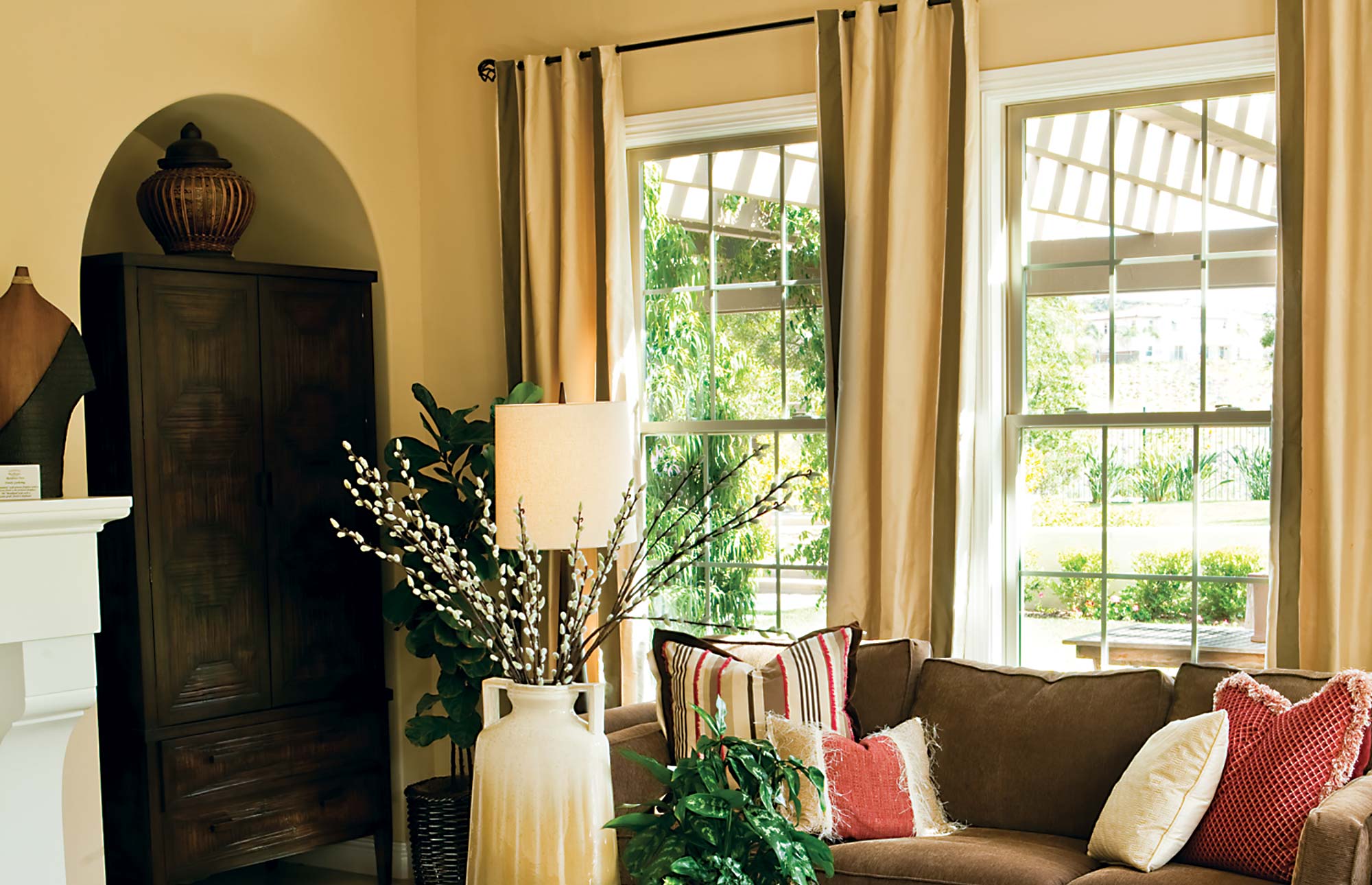

INTERIOR
- Dedicated head extrusion is specifically designed to eliminate snap-in accessory adaptors and allows for superior strength, insulation, and rigidity for shaped top products.
- Optional operational control device can be added to meet code requirements.
- Low profile “EasyTouch” tilt latches offer easy operation and cleaning.T
- Dual wall construction increases strength, rigidity and insulation where the glass meets the frame.
- The integral ergonomic lift rail located at the glass line allows fingertip control with safe and easy operation.
OTHER BENEFITS
- Precision fusion welding ensures that the sash and frame joints are completely sealed and perfectly square.
- Virgin uPVC construction is virtually maintenance free and provides exceptional insulation value.
- 3/4” insulated glass with warm edge technology upgradable to 7/8” triple glaze insulated glass for maximum insulation value.
- Cornerstone windows have narrow frame and sash profiles to maximize your viewing area.
SMART GLASS
Since over 80% of your window is glass, it makes sense to select the highest performing glass that will provide you the best value in your home. Not all Low-E glass performs equally. You need glass that is smart enough to block what you don’t want and allow what you do want into your home. Our spectrally selective soft coat Low-E glass provides maximum protection to your home in winter and summer.
Smart Low-E
Our Solar Smart (SS) Low-E uses 3 microscopic layers of silver to maximize the energy efficiency of your window. SS Low-E glass reduces heat gain by 64% compared to ordinary glass and blocks 95% of harmful UV rays.
Argon Gas
Argon is a non-toxic, odorless, inert gas that is heavier than air. It provides superior insulation value when used inside an insulated glass unit. All windows with Smart Glass come standard with Argon fill.
Smart Spacer Systems
Our warm edge Intercept spacer system creates a thermal barrier between the inside and outside pane. The steel U-channel design is wrapped in butyl, preventing glass to metal contact, thus reducing the possibility of temperature transfer from one pane to the other.
Our structural foam SuperSpacer creates the best thermal barrier between glass panes. Because the material is non-metal, it virtually stops the transfer of temperature from outside pane to inside pane. This closed cell polymer foam spacer provides improved condensation resistance.
SINGLE HUNG
U VALUE — 0.28
SHGC — 0.22
DOUBLE HUNG
U VALUE — 0.29
SHGC — 0.22
SLIDER
U VALUE — 0.28
SHGC — 0.22
PICTURE WINDOW
U VALUE — 0.27
SHGC — 0.23
-

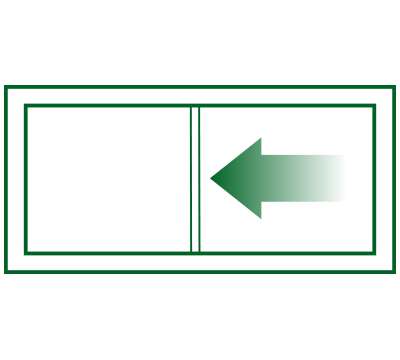

HORIZONTAL SLIDER
-

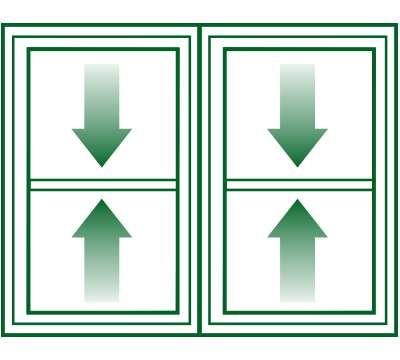

TWIN DOUBLE HUNG
-

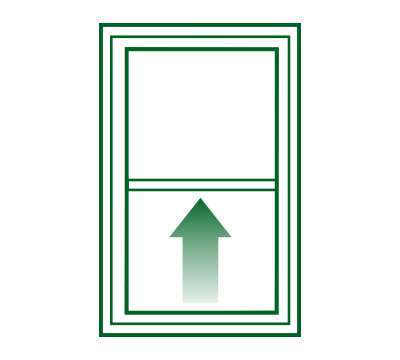

SINGLE HUNG
-

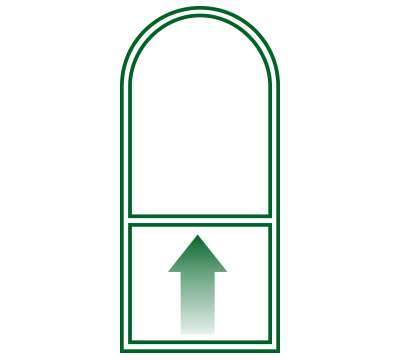

OPERABLE ARCHITECTURAL
-

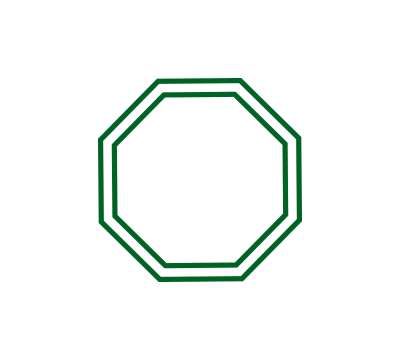

GEOMETRIC SHAPES
-

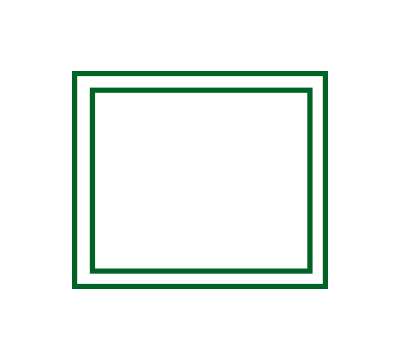

PICTURE WINDOW
MANY STYLE OPTIONS
Cornerstone XT window styles are remarkably customizable. Whether you’re restoring your home with energy efficient products or building something new, create just the right combination to make your home amazing, inside and out.
-

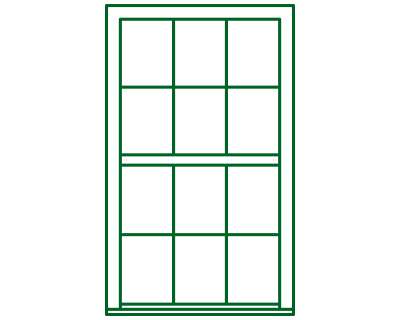

COLONIAL
-
FRENCH COUNTRY
-

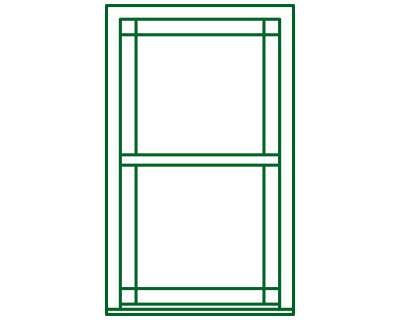

6 LITE PRAIRIE
-

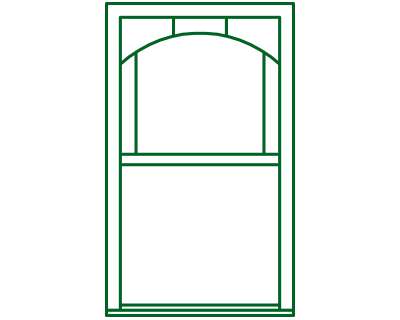

ARCH TOP PRAIRIE
-

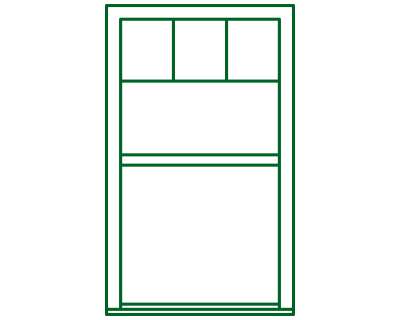

VALANCE
-

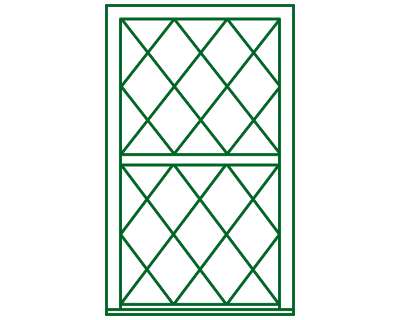

DIAMOND PATTERN
EXPRESS YOURSELF
Our many divided lite options give your windows the look of multi-paned glass. These options give you the flexibility of selecting the look that best enhances the beauty and character of your home.
-
3/4 in. Flat
-
Contour
STANDARD COLORS
-
1 1/4 in. SDL*
-
7/8 in. SDL*
ALL COLORS
FOR LIFE
Every Cornerstone XT window is backed by a Lifetime Warranty, for your peace of mind. Contact Window Innovations, LLC for more details.
Cornerstone XT windows with Smart Glass are ENERGY STAR qualified in many areas of the country. For a complete listing of NFRC ratings contact Window Innovations, LLC.
WINDOW INNOVATIONS
Window Innovations has proven over it's long history that window replacement from start to finish can be quite easy. Our installers will work with you to get the job done right. We take great pride in our installation craftsmanship. You can rely on us to measure, install your new windows and doors, and even haul away your old ones. Our fully staffed service department is always available to meet your needs.
Should you need our service department, we have dedicated, highly trained professionals that will work quickly and efficiently to resolve your issues and ensure customer satisfaction. Our knowledge, experience, and long-term relationships with our manufacturers sets us apart by allowing us to meet your needs specifically. You receive the best solutions for your home or business at a reasonable investment. Our commitment to develop, train, and certify our associates, ensures that every job is completed with the greatest amount of competence and customer satisfaction.
The owners of Window Innovations have strong roots in manufacturing and know what to look for when it comes to choosing makers of high quality windows. That’s why we have chosen the Harry G. Barr Company as the exclusive manufacturer of the Cornerstone XT replacement window.
For over 80 years the Harry G. Barr Company has provided the highest quality building materials available. A product is only as good as the quality of the company that stands behind it. Since 1934 the Harry G. Barr Company has proudly stood behind every product it has produced. Opened as a family business, the high ideals and strong business ethics that helped grow the company continue today through the third generation of family ownership and management.
Window Innovations is the experienced company you can trust for your home rennovation project. The Cornerstone XT is exactly what you’ve been looking for to keep your house beautiful and energy efficient for years to come.
CONTACT US
Want to get started beautifying your home? Contact us or come by our showroom.
Showroom Location
14501 N. Santa Fe Ave
Edmond, OK 73013
Office Phone
405.416.3532
Kevin Wright, Owner/Partner
405.808.2028
